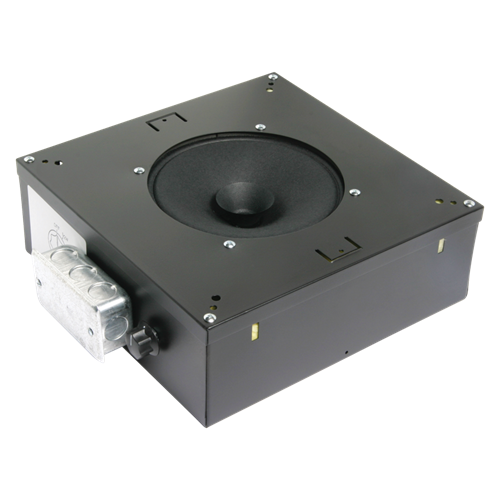

8" Soundmasking Speaker With 529 Cu. In. Channel Rail Enclosure
ASM-8-12BX/RX square enclosure offers a cubic content of 529 cu. in. (.087 m3) C10A, 8" Dia. loudspeaker and a 70.7V (T7) transformer. Loudspeaker mounting plate contains no perforated grille and thus positions the speaker cone as fully exposed.
8" Dual Cone Speaker
12 Watts
70v Transformer Taps:
.5, 1, 2, 5 Watts
11 5/8" (295 mm) Square
4" (102mm) Deep
No Baffle
529 Cu In. Enclosure
