LXR-IAV: LXR WITH INSTALLED ACCESSORIES

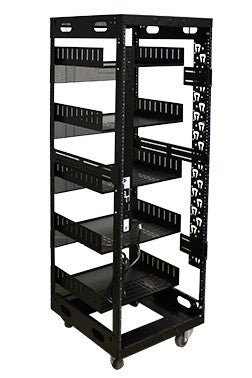

The LXR---IAV is a pre-assembled E.I.A compliant rack that includes a set of installed accessories commonly used in AV applications. The unit is shipped in a ready-to-use format, saving assembly time at the shop. The rack is 21 in. D x 19.21 in. W (533 mm x 488 mm) and supports a load up to 400 lbs. [181 kg]. Rack base and top are 14-gauge steel with vented fronts for natural heat dissipation. Corner post mounting rails are 11-gauge steel tapped 10-32. Racks that are 30U or taller include two side support brackets for torsional rigidity. Black powder epoxy finish. Rack and accessories are made in the U.S.A. except as noted.
Click on each Model for Data Sheet
|LXR-1421-IAV||14||21 ||3||2||1 (6 outlet)||1||4|
|LXR-3021-IAV||30||21 ||5||5||1 (12 outlet)||1||4|
|LXR-3821-IAV||38||21 ||6||6||1 (12 outlet)||1||4|
*One rack unit (RU) = 1.75 in or 44.45 mm
